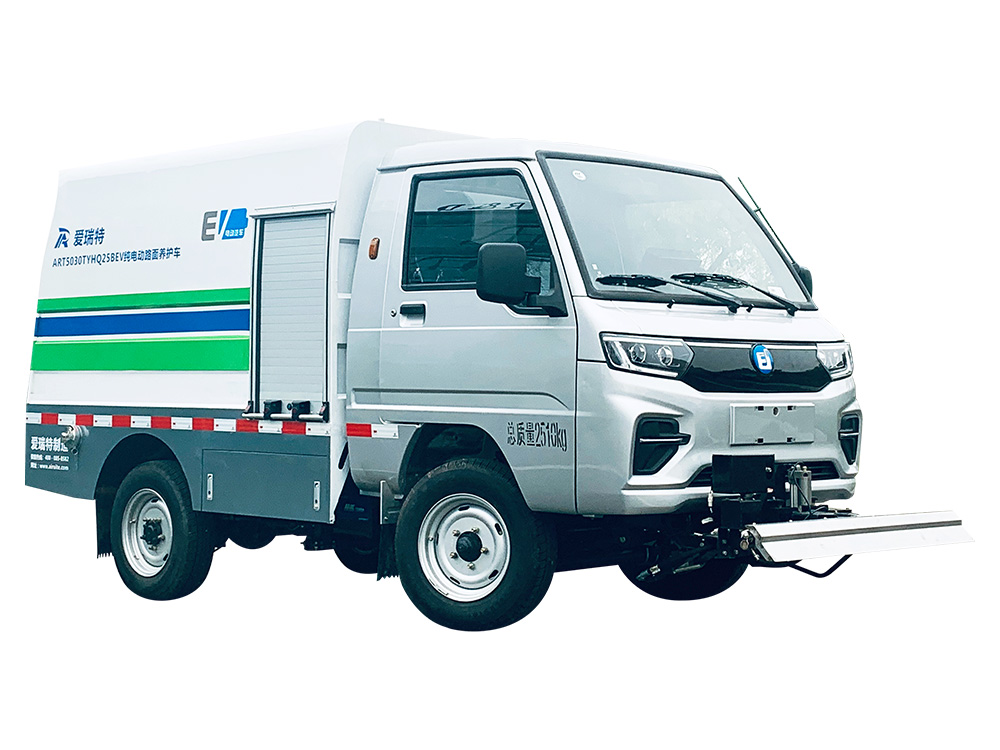

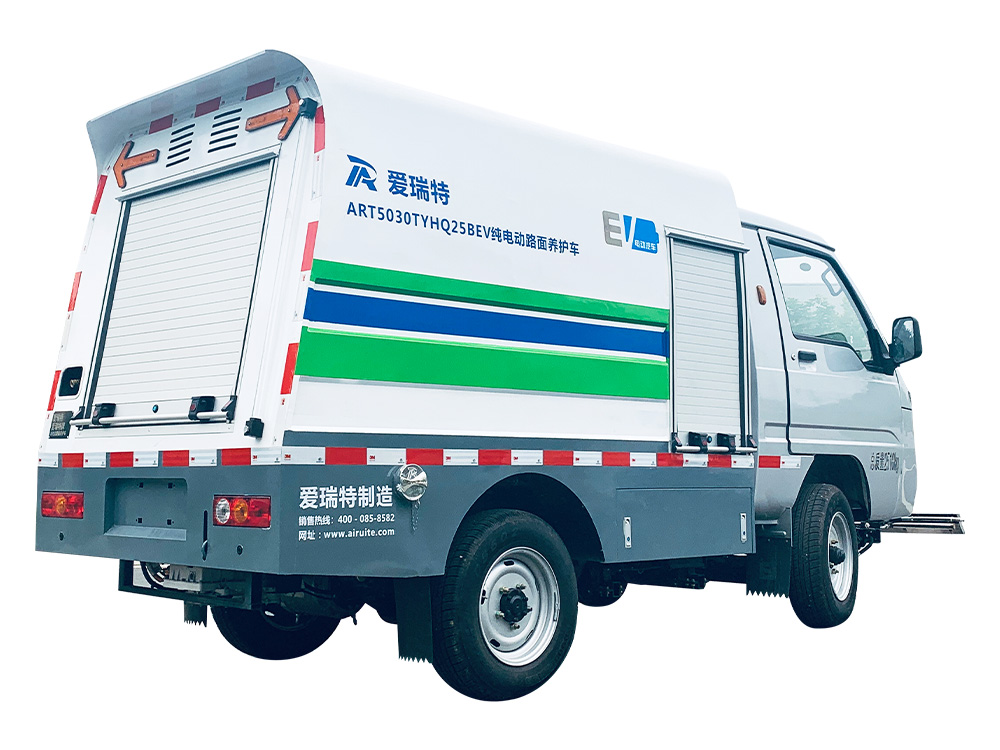

Art530tyhq25bev pure electric road maintenance vehicle is mainly used for washing and maintenance of motorway, non motorway, sidewalk, back street alley, municipal garden, property community and other roads. The lower left and right side flushing can be combined with the sweeper, and the front high-pressure flushing and multi angle flushing device is used to clean the dirt and urban psoriasis at the road surface, road teeth and traffic sign lines. At the same time, it is suitable for garden medicine, and the rear washing cart, washing site and high-pressure water gun can be used to wash and maintain the sections where vehicles are inconvenient to stop.
◆ box body: high-quality high-strength steel plate. The three sides of the box body adopt curtain box doors for fire engines, which is atmospheric and beautiful;

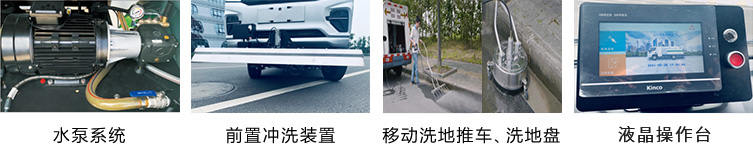

◆ flushing system: front high-pressure flushing, rear floor washing cart, washing site and high-pressure water gun;
◆ water pump system: compound excitation brushless DC motor cooperates with AR high-voltage water pump, with stable performance; Honda gasoline engine can be selected.
| Parameters | ART5030TYHQ25BEV Pure electric road maintenance vehicle |
| Chassis model / brand | DLP1030BEVT01/De Shuai brand |
| Total mass | 2510kg |
| Curb weight | 1760kg |
| Wheelbase | 2000mm |
| Battery brand | Boat voyage |
| Battery capacity | 41.16kWh |
| Range | ＞255km（Working condition method） |
| Maximum speed | 90km/h |
| Gradient | ≥20% |
| Turning radius | ≤5m |
| Water tank volume | 1.2m3 |
| Front spray bar cleaning width | 1.5m |
| Hedge cleaning width | 10m |
| Pump flow（L/min ） | 30L/min |
| Pump pressure（Mpa） | 0~25Mpa |
| Overall Dimension (L × W × H) | 4345×1575×2070mm |
