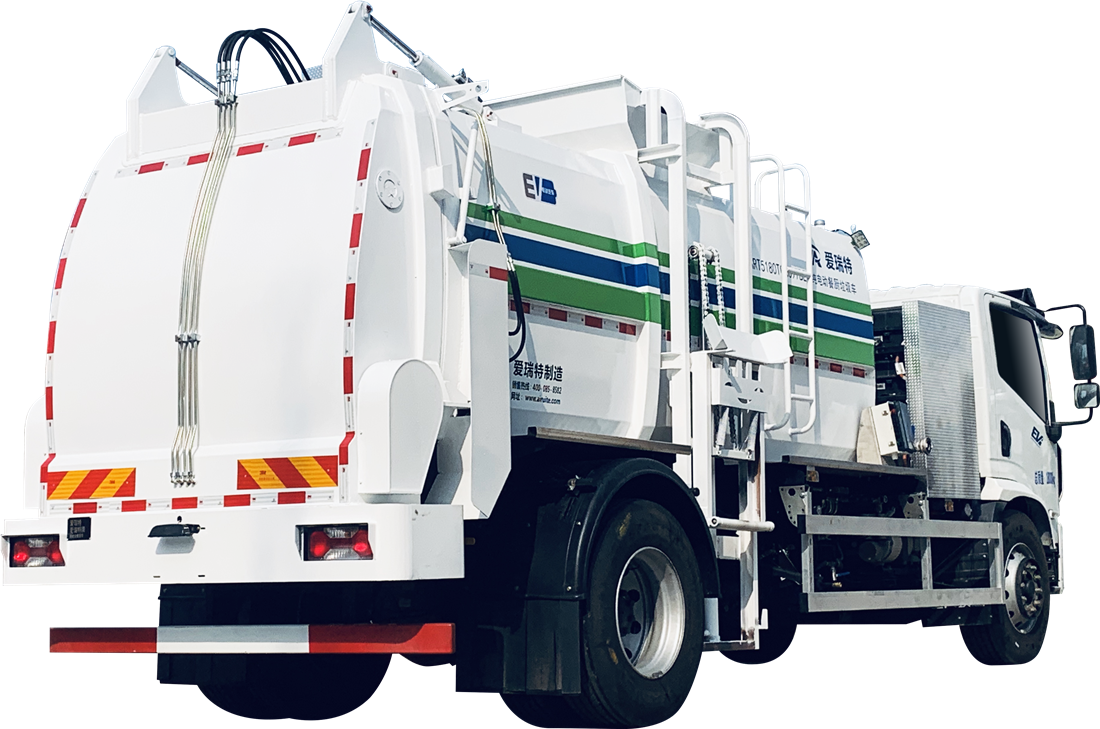

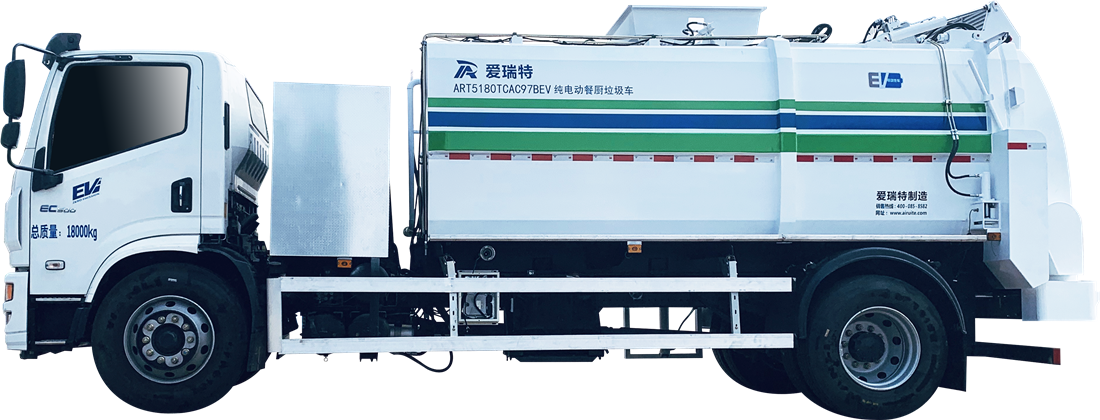

ART5180TCAC97BEV Pure electric kitchen garbage truck is mainly used for collection and transportation of kitchen and kitchen waste in catering industry, unit canteen, living area and other places. It is pure electric operation, with low cost and zero emission.

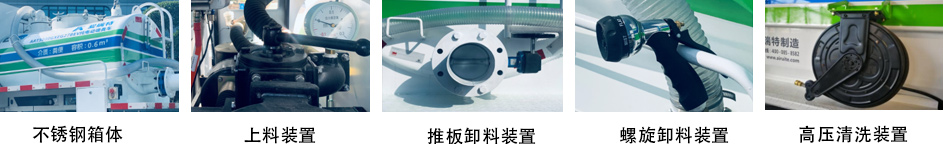

◆ box: the box is made of high-strength carbon steel anti-corrosion treatment / high-quality stainless steel plate, the feeding port is sealed by a sealing cover, and the opening and closing are controlled by the hydraulic system;
◆ material receiving system: side chain bucket turnover mechanism for loading;
◆ compression system: push and squeeze after pushing the plate;
◆ unloading system: the solid-liquid separation device is built in the box, which can push the plate for extrusion and screw fixed-point unloading;
◆ hydraulic system: the rated pressure of the hydraulic system is 16MPa, the discharge door is pulled up with double rods, equipped with two-way balance valve, and key components such as electrical and hydraulic components are of well-known brands;
◆ cleaning system: equipped with hydraulic cleaning device to clean the whole vehicle.
Entry name | Company | Parameter |
Chassis model / brand | / | SH1187ZPEVWZ/Leap forward |
Total mass | kg | 18000 |
Curb weight | kg | 9820 |
Wheelbase | mm | 4900 |
Battery brand | / | Ningde times (lithium iron phosphate) |
Battery capacity | kWh | 218.16 |
Range | km | 410(Working condition method) |
Maximum speed | km/h | 90 |
Maximum climbing gradient | % | 30 |
Minimum turning radius | m | 8.5/9.5 |
Bin volume | m3 | 8.5 |
Volume of sewage tank | m3 | ≧?0.85 |
Clean water tank volume | m3 | ≧?0.45 |
Upper feeding cycle time | s | ≤22 |
Cycle time of discharging operation | s | 350（Sealing discharge），45（Push discharge） |
Overall dimension(L × W × H) | mm | 7900×2540×3160 |
